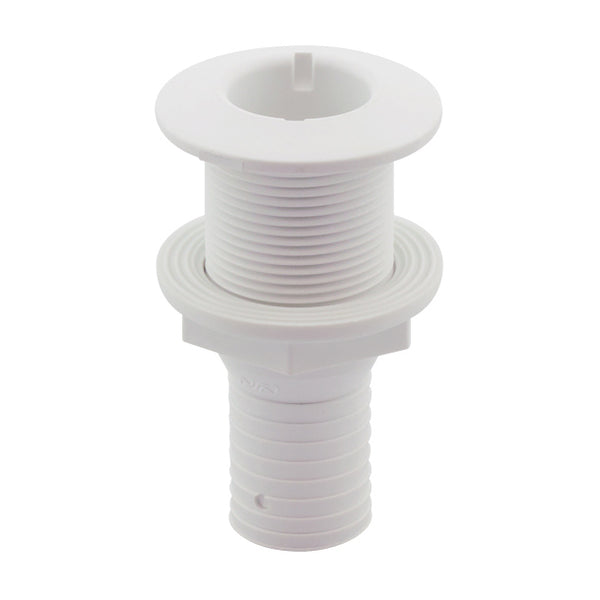

White polyamide thru hull fitting with hose barb. Flush flange. Compatible with most silicone sealants.
We recommend against installing plastic fittings below the waterline and they should be fitted at least 150mm above the waterline.

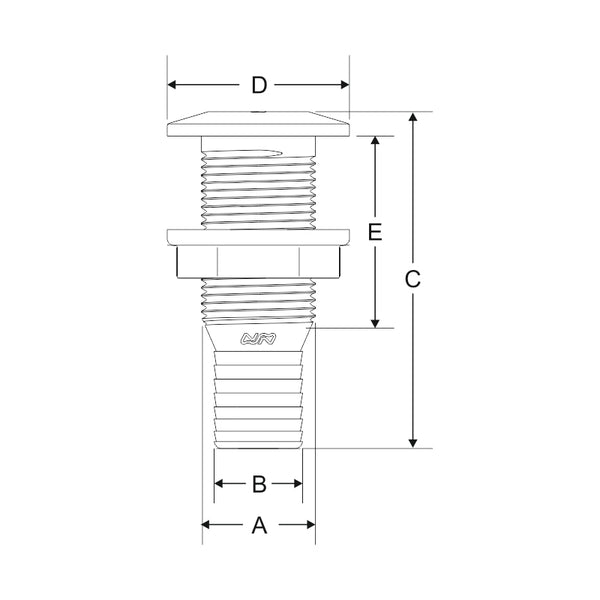

| Part no. | Thread size | B | C | D | E | Optional plug |
| 198223 | 1/2" BSP | 16mm | 85mm | 40mm | 39mm | n/a |
| 44696 | 5/8" BSP | 16mm | 75mm | 43mm | 40mm | n/a |
| 44705 | 3/4" BSP | 19mm | 88mm | 47mm | 45mm | n/a |

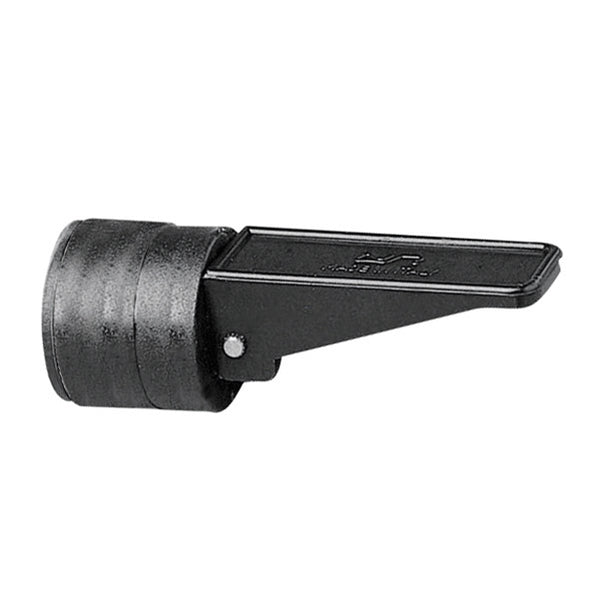

| 44714 | 1" BSP | 25mm | 97mm | 52mm | 52mm | 22mm bung |
| 198227 | 1 1/4" BSP | 32mm | 107mm | 62mm | 53mm | n/a |
|
44729 |
1 1/2" BSP | 32mm | 102mm | 76mm | 55mm | 35mm bung |
|
44723 |
1 1/2" BSP | 38mm | 107mm | 76mm | 53mm | 35mm bung |
