White polypropylene thru hull skin fitting with 90 degree bend. This has a removable outer cap which eases installation and can be supplied in white or chromed plastic.
This can be used to save room, eg with the hose running alongside the hull or down from a loop.
Note that these are not usually suitable for installation in hulls thicker than 20mm.
We recommend against installing plastic fittings below the waterline and they should be fitted at least 150mm above the waterline.
This can be used to save room, eg with the hose running alongside the hull or down from a loop.
Note that these are not usually suitable for installation in hulls thicker than 20mm.
We recommend against installing plastic fittings below the waterline and they should be fitted at least 150mm above the waterline.

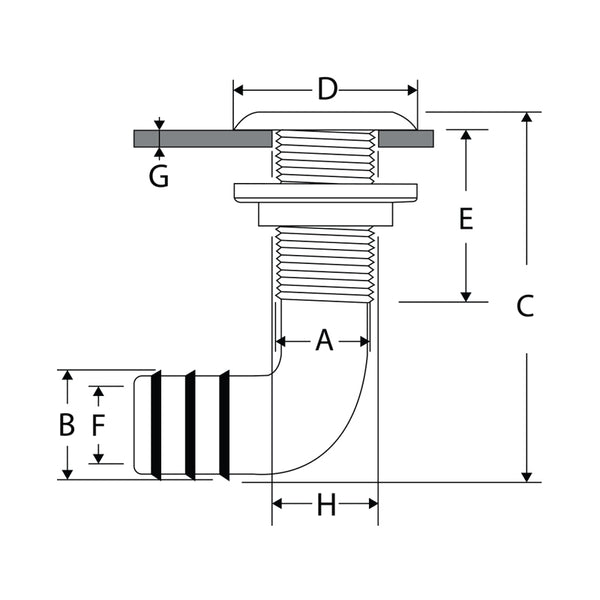

| Part no. | Thread size | B | C | D | E | F | H |

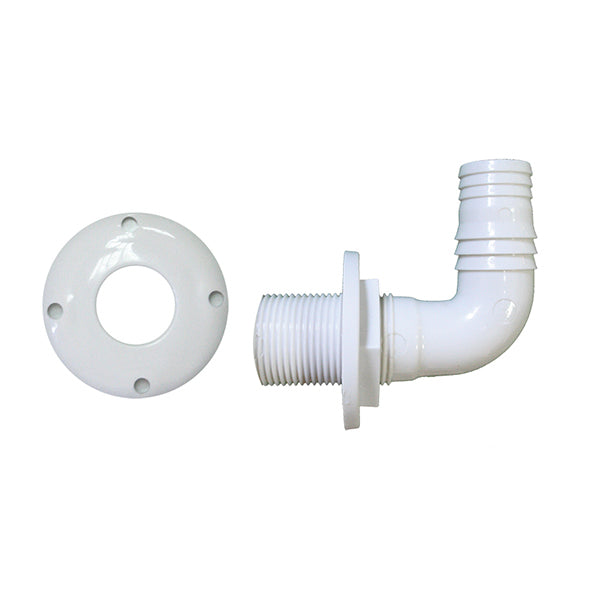

| 10254 White |
1" BSP | 24.5mm | 105mm | 60mm | 46mm | 20.5mm | 32mm |

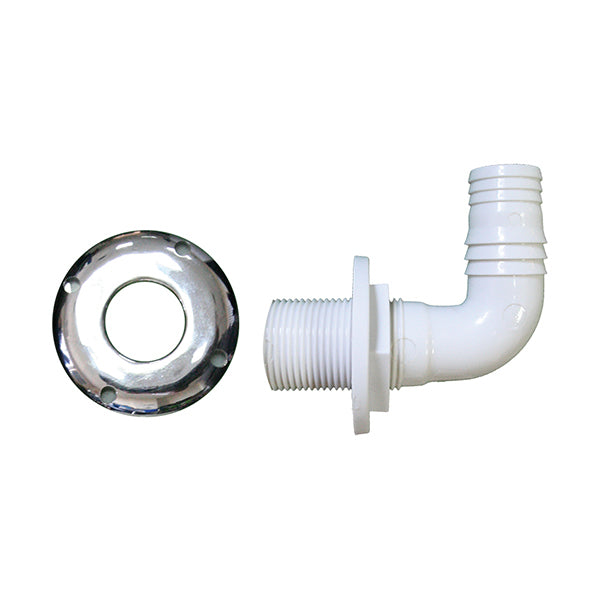

| 70601 Chrome |
1" BSP | 24.5mm | 105mm | 60mm | 46mm | 20.5mm | 32mm |
