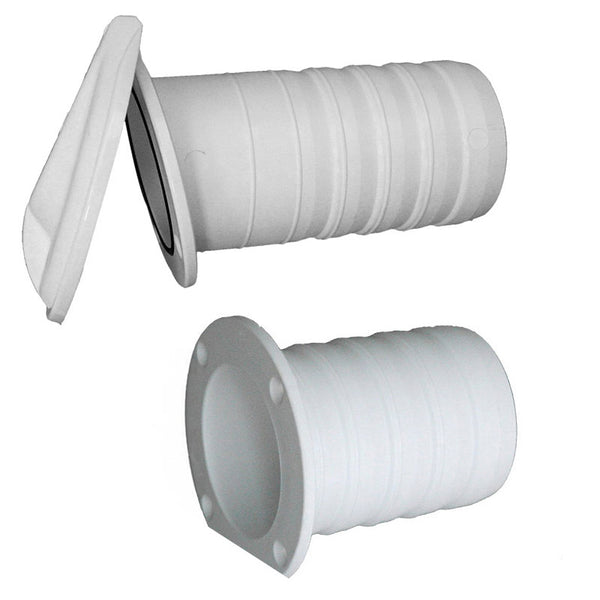

Complete transom assembly drain kit comprising outer tube with transom flap and inner tube.
This can be used to replace the drain fitting on various Quicksilver boats (including Pilothouse) as well as OEM drains which are fitted to various boats including Quicksilver, Beneteau, Jeanneau etc..
Dimensions
Flap maximim width: 135mm
Flap height: 130mm
Diameter of white transom flange: 109mm
Overall length (including flap): 170mm
External diameter of tube: 76mm (3 inch)
Length of tube: 103mm
Radius of tube (flat part): 45mm
Radius of tube (rounded part): 55mm
All measurements +/-3mm
Guide to replacement of transom flaps on Quicksilver boats
Quicksilver boats used two similar types of deck drain, which have slightly different hinge mechanisms:

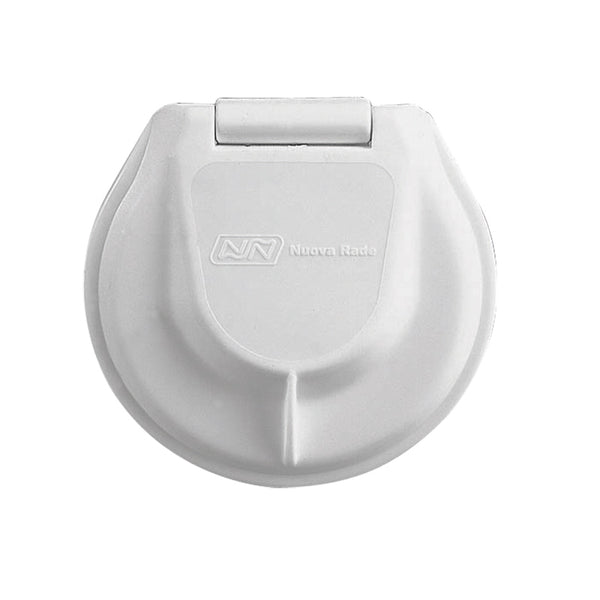

White flap with 'Flying M' logo or 'Nuova Rade' logo (later boats) - replace with this complete assembly; or buy just the flap (part reference 49672).
Chromed flap marked 'Springfield' (early boats, tends to discolour after time) - this is no longer available and there are two options to replace it as the hinge mechanism isn't compatible with the Nuova Rade drain assembly:
(i) remove the outer fitting and replace it with this one
(ii) remove the chromed flap and fit a replacement flap (part reference 49672) by screwing the new hinge (supplied with the flap) to the transom after cutting off the original hinge (part of the drain fitting) and cutting the surround of the tube to make it fit.
Please note that the chromed flapper is no longer available and if you need to replace one, either fit this replacement tube and flap assembly, or change just the flap!
