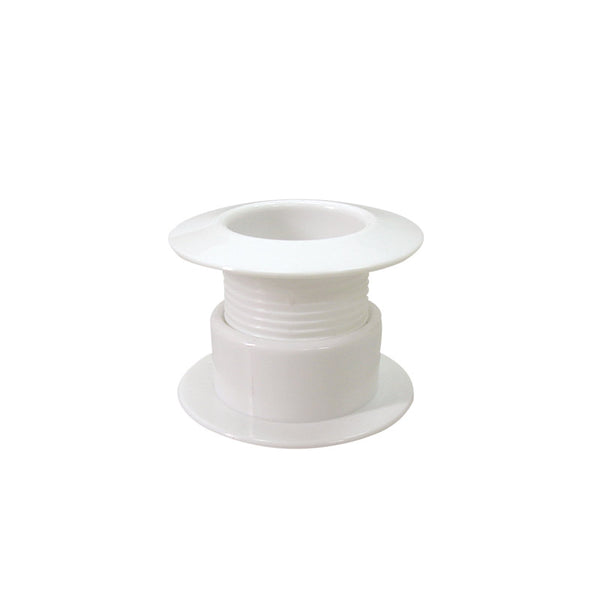

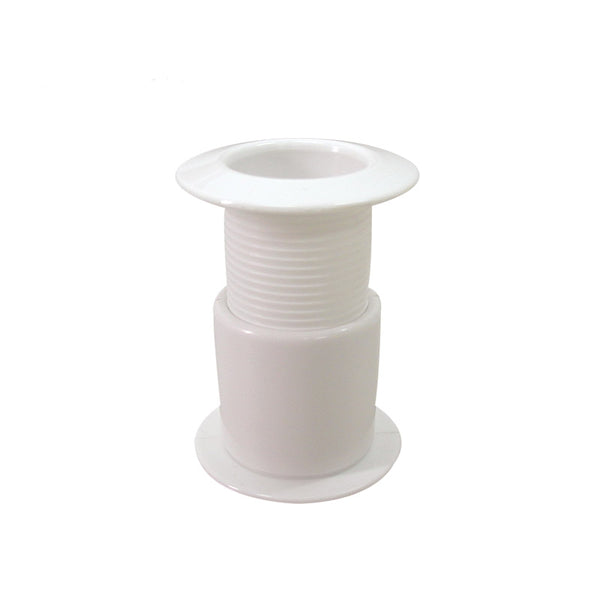

Thru hull deck drain for connection to a 2" / 50mm hose.
Comprises drain pipe, plus transom finishing ring with flapper valve.
This deck drain is made of tough, UV-resistant ABS plastic. The flapper valve and external finishing ring are available as spare parts.

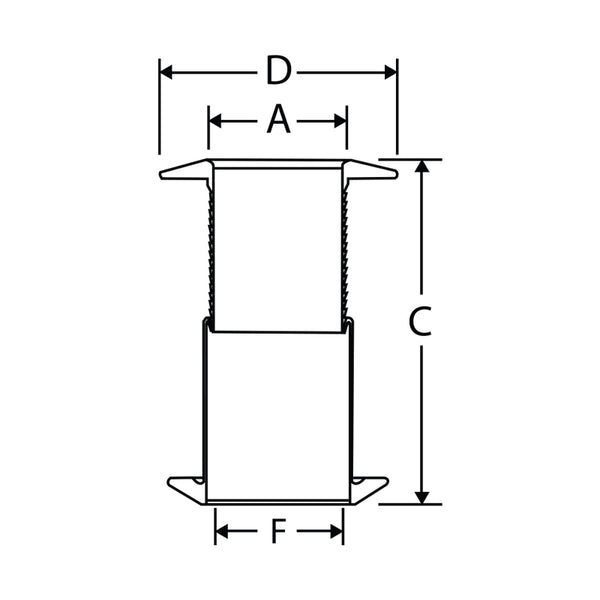

Dimensions
External fitting: 80mm diameter (cover, overall)
Overall length: 116mm
Minimum internal diameter: 41mm
External diameter of hose connection: 50mm
External diameter of threaded section: 55mm
Thread length: 60mm
Maximum hull thickness: approximately 45mm to 48mm
All measurements +/- 2mm
Part reference: 43253
